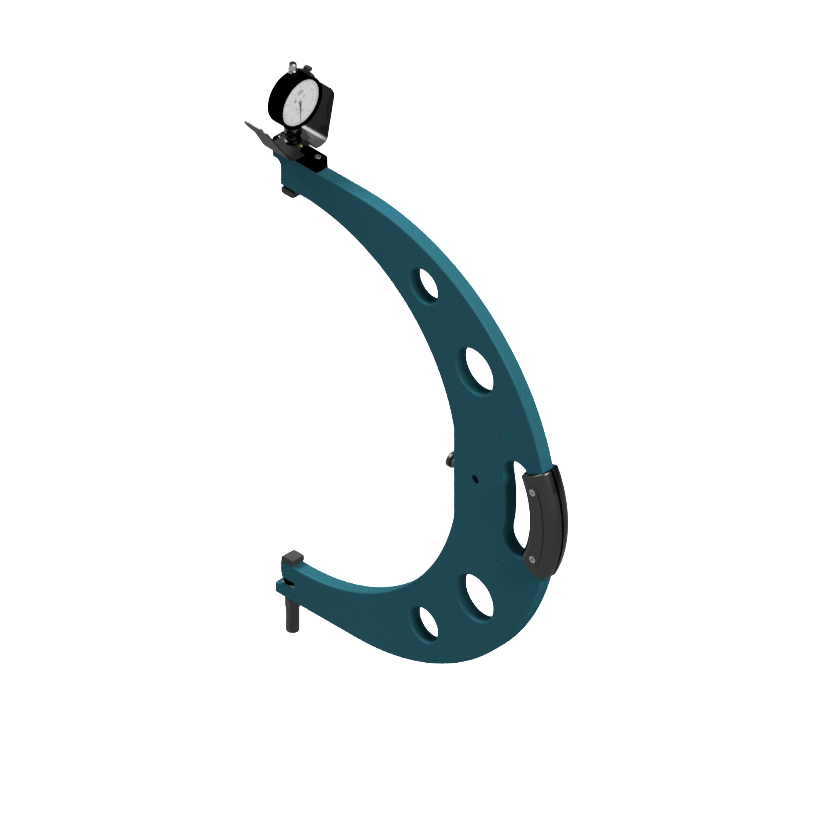

DS-S2-12387 SSG Snap Gage

Features:

• 2I50-01 .0001" graduation multi rev. indicator
• Range 16 - 17" / 406 - 432mm
• .060" gaging travel is standard, optional with .100" or .500"
• Adjustable gaging pressure
• Well balanced precision machined aluminum jig plate frame
• Lower anvil features 1" travel micrometer style adjustment with rapid lock nut
• Collet mounted indicator can be rotated to suit
• 5/8" square solid carbide lapped anvils with generous lead radius
• Anvils are flat & parallel within .00015" on frame sizes below 4", within .0002" on 4"-8", .00025" on 8-12" and .0003" above 12"
• Nylon backstop protects parts during loading
• Thermal isolation grips
• Lifting lever optional
