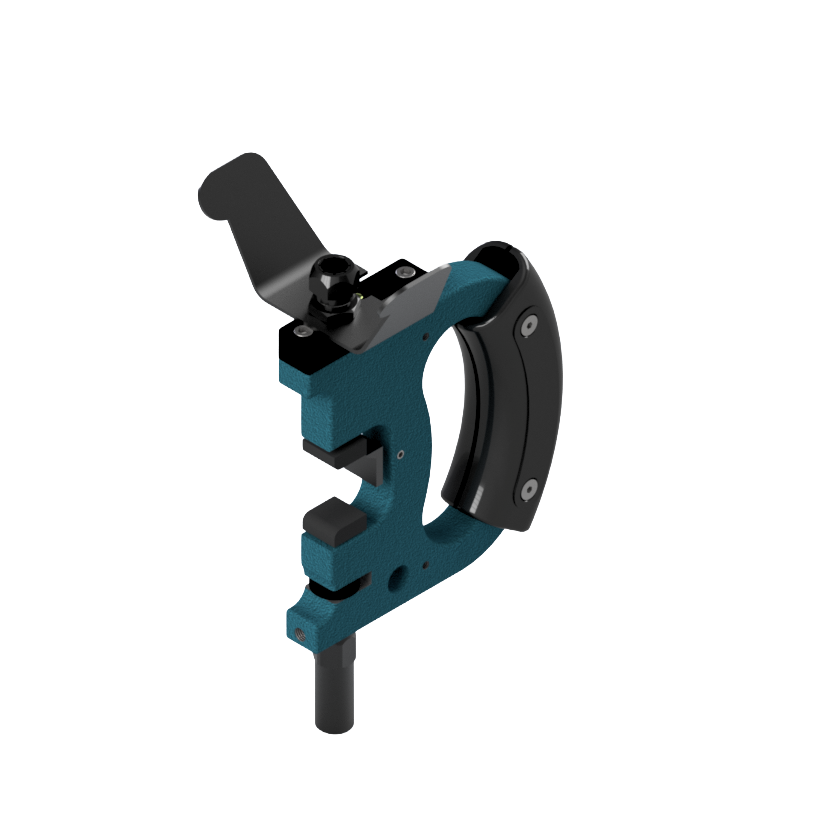

DS-S2-15371 SSG Snap Gage

Features:

• Less indicator
• Range 0 - 1"/0 - 25mm
• .060" gaging travel is standard
• Adjustable gaging pressure
• Well balanced precision machined aluminum jig plate frame
• Lower anvil features 1" travel micrometer style adjustment with rapid lock nut
• Collet mounted indicator can be rotated to suit
• 5/8" square solid carbide lapped anvils with generous lead radius
• Anvils are flat & parallel within .00015" on frame sizes below 4", within .0002" on 4"-8", .00025" on 8-12" and .0003" above 12"
• Nylon backstop protects parts during loading
• Thermal isolation grips
